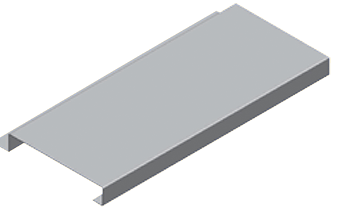

Ceiling Strip with Butt Joint (Plain / Perforated)

Building material manufacturer | Ceiling Strip With Butt Joint
Reference Dimensions (A-B-C-D-E) (mm) Thickness (mm) Length (mm)
GTISC100 11.6 - 15 - 100 - 15.6 - 10.6 0.6/0.7/0.8 3000
GTISC200 11.6 - 15 - 200 - 15.6 - 10.6 0.6/0.7/0.8 3000
GTISC300 11.6 - 15 - 300 - 15.6 - 10.6 0.6/0.7/0.8 3000
GTISC400 11.6 - 15 - 400 - 15.6 - 10.6 0.6/0.7/0.8 3000
Building material manufacturer | LINEAR STRIP CEILING SYSTEM Diagram
  • Special sizes are available upon request.
  • Polyester coating conform to ECCA Standards and performed as per EN Norms 1396 /
  • EURO NORM EN 485-4:1993
  • Powder coating as per EN Norms EN 12206-1

Note: All dimensions are in mm.

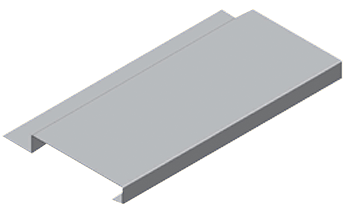

Ceiling Strip Gap Joint (Plain / Perforated)

Building material manufacturer | Ceiling-Strip-Cage-Joint
Reference Dimensions (A-B-C-D-E) (mm) Thickness (mm)
GTISC82.5 11.6 - 15 - 82.5 - 15.6 - 26.6 0.6/0.7/0.8
GTISC182.5 11.6 - 15 - 182.5 - 15.6 - 26.6 0.6/0.7/0.8
GTISC282.5 11.6 - 15 - 282.5 - 15.6 - 26.6 0.6/0.7/0.8
GTISC382.5 11.6 - 15 - 382.5 - 15.6 - 26.6 0.6/0.7/0.8
Building material manufacturer | Ceiling-Strip-Cage-Joint- Image
  • Special sizes are available upon request.
  • Polyester coating conform to ECCA Standards and performed as per EN Norms 1396 /
  • EURO NORM EN 485-4:1993
  • Powder coating as per EN Norms EN 12206-1

Note: All dimensions are in mm.

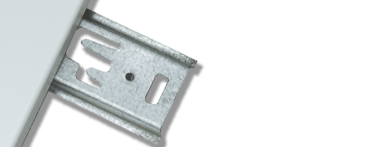

Ceiling Strip Carrier

Building material manufacturer | CEILING-STRIP-CARRIER
Reference Length (mm)
GTICSC 3000/4000
Building material manufacturer | LINEAR STRIP CEILING SYSTEM Diagram
  • Material: Galvanized finish comply with ASTM A653M Standards
  • Special sizes are available upon request.
  • Custom length sizes are available upon request.
  • Standard length of 3000mm to 4000mm According to SAE/AISI or BS EN 42JIndirect hung comply with ASTM C635M

Note: All dimensions are in mm.

Self Supporting Ceiling Strip

Building material manufacturer | Self-Supporting-Ceiling-Strip
Reference Dimensions (A-B-C-D-E-F)(mm) Thickness (mm)
GTISSC100 8.7 - 35 - 100 - 35.6 - 14.1 - 8.2 0.6/0.7/0.8
GTISSC200 8.7 - 35 - 200 - 35.6 - 14.1 - 8.2 0.6/0.7/0.8
GTISSC300 8.7 - 35 - 300 - 35.6 - 14.1 - 8.2 0.6/0.7/0.8
GTISSC400 8.7 - 35 - 400 - 35.6 - 14.1 - 8.2 0.6/0.7/0.8
Building material manufacturer | LINEAR STRIP CEILING SYSTEM DIAGRAM
  • Polyester coating conform to ECCA Standards and performed as per EN Norms 1396 / EURO NORM EN 485-4:1993
  • Powder coating as per EN Norms EN 12206-1
  • Special sizes are available upon request

Note: All dimensions are in mm.

Aluminium Edge Trim

Building material manufacturer | Aluminium-Edge-Trim
Reference Dimensions (A-B-C) (mm) Thickness (mm) Length (mm)
GTIET 20 - 20 - 20 0.6/0.7/0.8 3000
Building material manufacturer | Linear Strip Ceiling Diagram
  • Polyester Coating Aluminium Edge Trim  (U-shape),Strip Ceiling same color finishing as the Aluminium Alloy / temper:3005-3105/H24
  • Standard ASTM B209-M EURO NORMS: EN 1396
  • Custom Lengths are available upon request.
    Note: All dimensions are in mm
